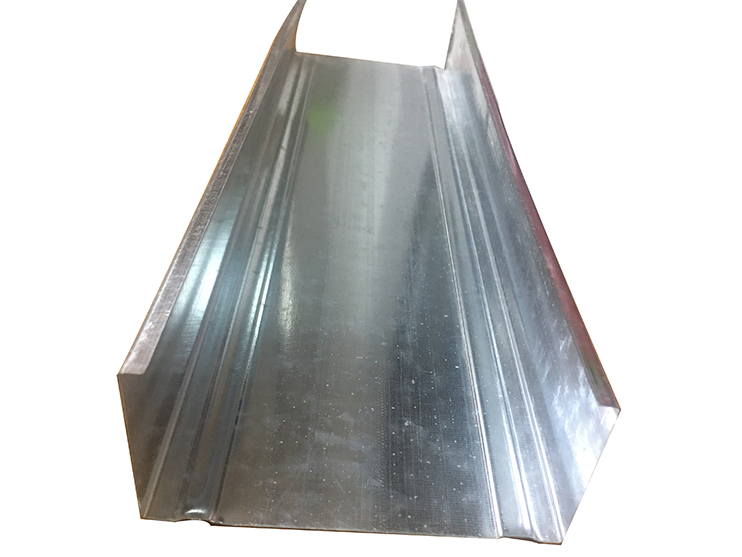

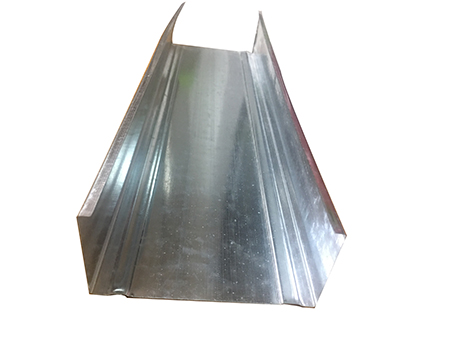

C-Shaped Channels

C-shaped channels are widely used in non-load bearing drywall framing systems and ceiling systems. Among this series of products, stainless steel C-shaped channels can also be used to build roof trusses and brackets, or be used in light industrial machinery manufacturing as columns, beams and arms.

As a professional metal building materials provider, we can provide various specifications and materials of C-shaped channels to satisfy your construction requirements of whole engineering projects or your requirements for bulk purchase.

Materials

Q195 hot dip galvanized steel
Q235 hot dip galvanized steel
201 stainless steel
201 stainless steel

Specifications

Model	Width (mm)	Depth (mm)	Thickness (mm)	Length (mm)
C50*17	50	17	0.3～0.6	3000/4000
C50*19	50	19	0.3～0.6	3000/4000
C50*45	50	45	0.3～1.2	3000/4000
C60*25	60	25	0.5～1.2	3000/4000
C60*27	60	27	0.3～0.6	3000/4000
C60*27	60	27	0.5～1.2	3000/4000
C70*30	70	30	0.3～1.2	3000/4000
C75*45	75	45	0.3～1.2	3000/4000
C75*50	75	50	0.3～1.2	3000/4000
C100*35	100	35	0.3～1.2	3000/4000
C100*45	100	45	0.3～1.2	3000/4000
C100*50	100	50	0.3～1.2	3000/4000
C150*50	150	50	0.3～1.0	3000/4000
C150*40	150	40	0.3～1.0	3000/4000

NBXF, engaged in the production of light-gauge steel framing products since 1994 and establishing our own factory in 2008, has deep understanding of the industry. Now we have 8 cold roll forming lines with daily output of about 100 tons, which can produce light-gauge steel frames with maximum thickness of 2mm. You just need to tell us your engineering requirements or specific size demands, and we will provide you with reliable products, reasonable price and in-time delivery.
