Z-Furring Channels
Z-furring channels are usually used in metal stud ceiling systems to clasp aluminous gusset plates. As an experienced manufacturer of light gauge steel framing products, NBXF can provide you with various common specifications or customized specifications of Z-furring channels, and small batch orders and large batch orders are all feasible.
Materials
- Q195 hot dip galvanized steel
- Q235 hot dip galvanized steel
- 201 stainless steel
- 304 stainless steel
Specifications

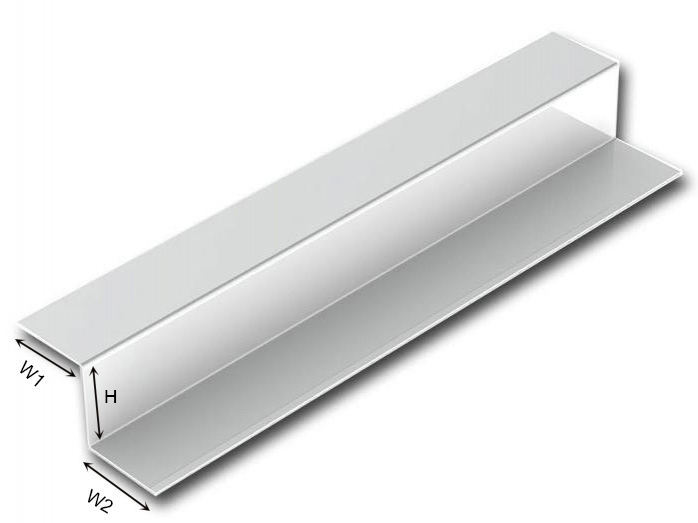

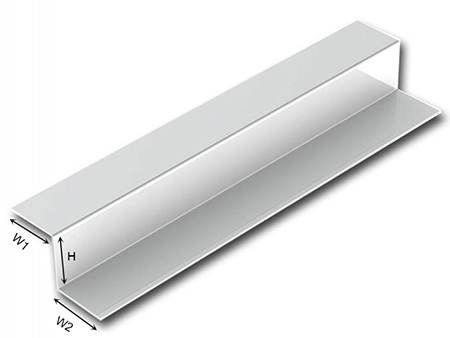

| Model | Cross-section dimension (mm) | Thickness (mm) | Length (mm) | Application | ||
| W1 | W2 | H | ||||
| Z-furring channel | 20 | 15 | 42 | 0.5～1.2 | 3000/4000 | Furring Channel |
NBXF, engaged in the production of light-gauge steel framing products since 1994 and establishing our own factory in 2008, has deep understanding of the industry. Now we have 8 cold roll forming lines with daily output of about 100 tons, which can produce light-gauge steel frames with maximum thickness of 2mm. You just need to tell us your engineering requirements or specific size demands, and we will provide you with reliable products, reasonable price and in-time delivery.
