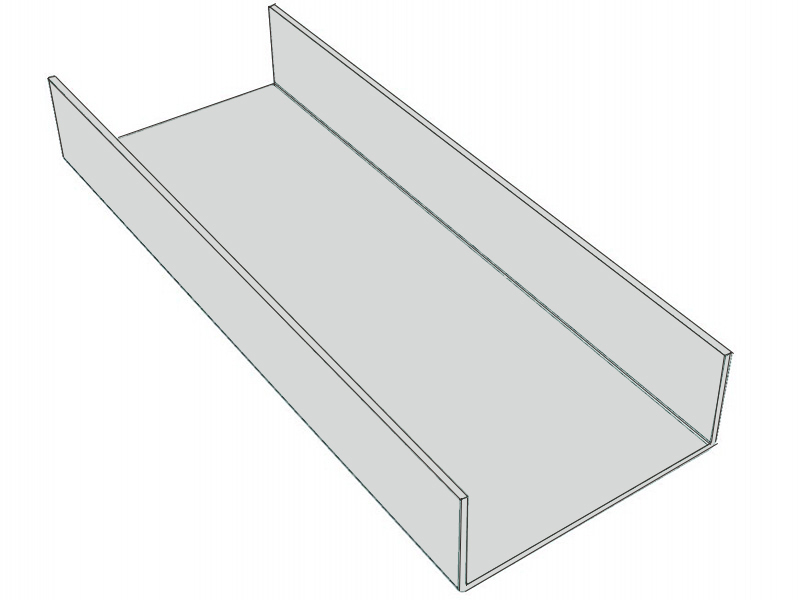

U-Shaped Channels

U-Shaped Channels

U-shaped channels are widely used for metal stud ceiling systems, drywall framing systems and other light gauge steel framing structures. For example, they can be used as horizontal channels and through channels in drywall framing systems and main carriers and edge channels in metal stud ceiling systems. We can provide various U-shaped channels with different lengths and section sizes, and the daily output can reach 100 tons. As a professional steel frame building materials provider, we can customize U-shaped channels with equal or unequal lengths on both sides according to different applications.

Materials
  • Q195 hot dip galvanized steel
  • Q235 hot dip galvanized steel
  • 201 stainless steel
  • 304 stainless steel
Specifications
ModelWidth (mm)Depth (mm)Thickness (mm)Length (mm)Application
U38*1038100.5~1.23000/4000Drywall through channel/Ceiling furring channel
U50*1150110.5～1.23000/4000Ceiling furring channel
U50*1450140.5~1.23000/4000Ceiling furring channel
U50*3550350.3～1.23000/4000Drywall U-shaped channel
U75*2575250.3～1.23000/4000Drywall U-shaped channel
U75*3575350.3～1.23000/4000Drywall U-shaped channel
U75*4075400.3～1.23000/4000Drywall U-shaped channel
U100*25100250.3～1.23000/4000Drywall U-shaped channel
U100*35100350.3～1.23000/4000Drywall U-shaped channel
U20*2020200.3～1.23000/4000Ceiling edge channel
U28*20*302820*300.3～1.23000/4000Ceiling edge channel

NBXF, engaged in the production of light-gauge steel framing products since 1994 and establishing our own factory in 2008, has deep understanding of the industry. Now we have 8 cold roll forming lines with daily output of about 100 tons, which can produce light-gauge steel frames with maximum thickness of 2mm. You just need to tell us your engineering requirements or specific size demands, and we will provide you with reliable products, reasonable price and in-time delivery.
